Discussion Starter · #1 ·

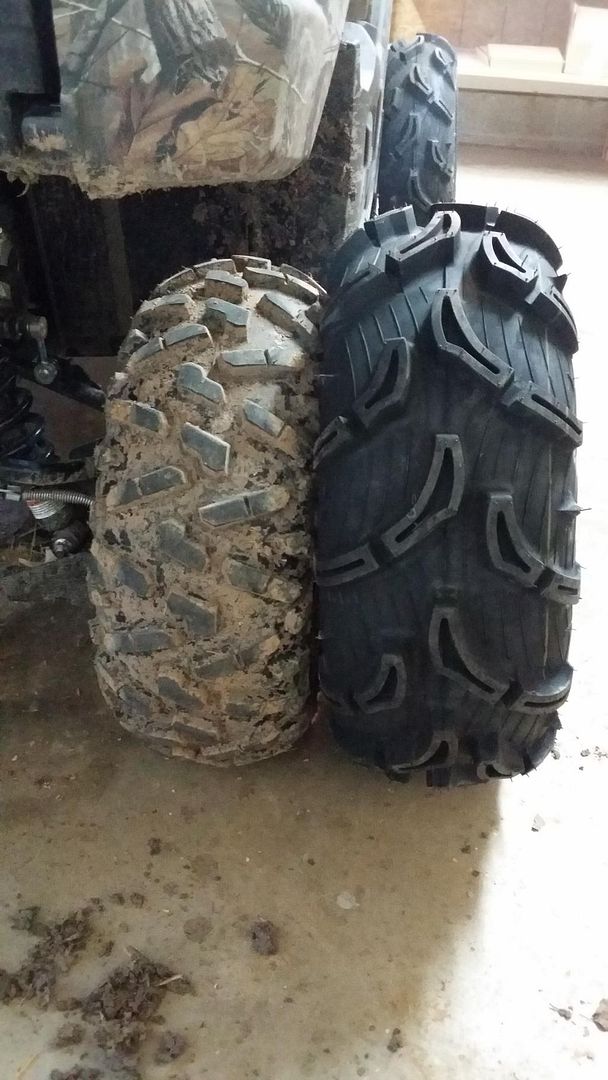

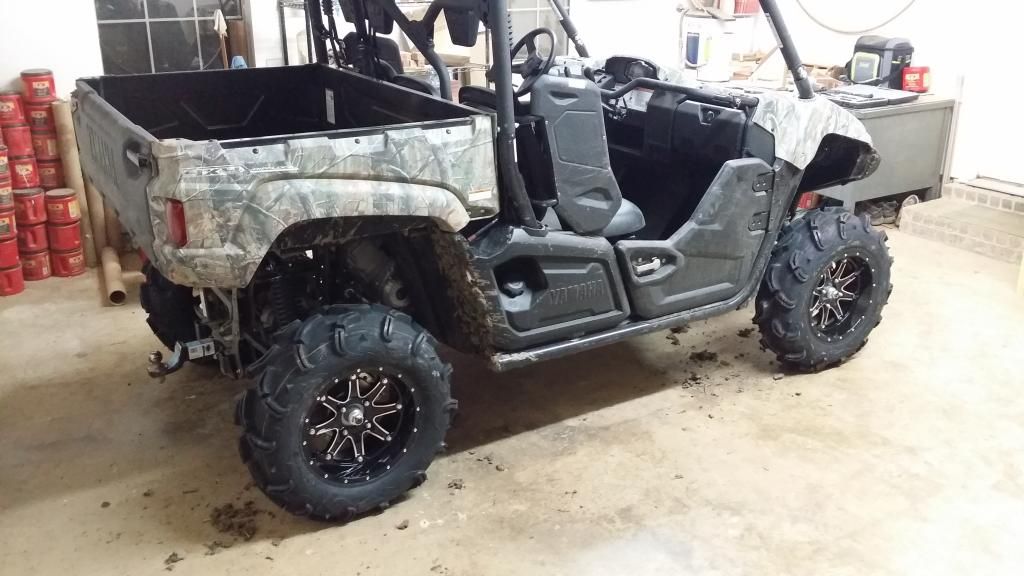

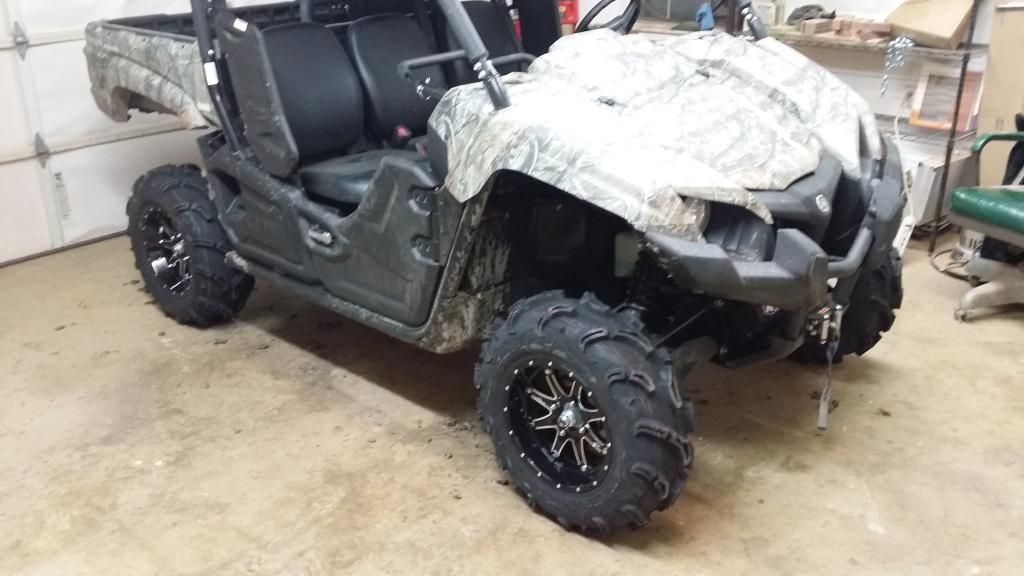

Well I got in my 28" Zillas on STI HD4 wheels today and got them all mounted. Didn't receive the center caps but they should be sending those soon. Fronts are 28x9x14 and the rears are 28x11x14. Off the viking they measured right at 28" but mounted they're coming in at 27".








  • Like
Reactions: Jdawg and jbviking

·
Premium Member
Joined
·
571 Posts
Looks awesome


·
Registered
Joined
·
260 Posts
Looks good ctown. your starting to look like my twin. Lol.


·
Registered
Joined
·
23 Posts
Discussion Starter · #5 ·
Looks good ctown. your starting to look like my twin. Lol.
We both have good taste! Brothers from another mother. lol!

I've got even more goodies to add on over the next week. Be looking for another post!


·
Registered
Joined
·
48 Posts
Well I got in my 28" Zillas on STI HD4 wheels today and got them all mounted. Didn't receive the center caps but they should be sending those soon. Fronts are 28x9x14 and the rears are 28x11x14. Off the viking they measured right at 28" but mounted they're coming in at 27".







those fit fine without lift ? thanks any rubbing?


·
Registered
Joined
·
23 Posts
Discussion Starter · #7 ·

·
Registered
Joined
·
8 Posts
Looks awesome! wanting a similar set up and im wondering what offset rim you ordered and anything else i may need to know? no issues at all with fitting on a stock machine? and do you notice any power loss? if you dont mind what did you pay for the set so i can compare when looking? thx


·
Banned
Joined
·
261 Posts
I got 28x10x12 front 28x12x12 rear zillas on itp delta wheels with caps and lug nuts for $665


·
Registered
Joined
·
8 Posts
If I go for the 28x9x14 and the 28x11x14 zillas what width rim do I need? All offset say 5-2 so I assume that will fit? Thx


·
Banned
Joined
·
261 Posts
You should check the fitment guide for the wheels you want. Generally 5+2 or 4+3.


·
Banned
Joined
·
261 Posts
If I go for the 28x9x14 and the 28x11x14 zillas what width rim do I need? All offset say 5-2 so I assume that will fit? Thx
Walnutz:

Here is a link to the STI Fitment Guide. Look at the bottom. It will tell you everything you need to know.

STI Fitment Guide


·
Registered
Joined
·
8 Posts
Im a but confused still as for how the width works? Tires im trying to find are 28x11x14 and 28x9x14 and all the wheels look to be 14x7 so im assuming 14x7 wheel will fit up to a 12inch wide tire?? thanks for the help


·
Banned
Joined
·
261 Posts
Im a but confused still as for how the width works? Tires im trying to find are 28x11x14 and 28x9x14 and all the wheels look to be 14x7 so im assuming 14x7 wheel will fit up to a 12inch wide tire?? thanks for the help
Yes. You will find that a 7 " wide rim will accommodate a tire up to 12" wide without a problem. If you are getting both tires and rims your best bet usually is to buy a package deal where the place mounts them for you and ships them ready to go along with the right center caps and lug nuts. You will need to make sure whoever you buy them from really understands that they are for a Viking since the center caps are unusually deep and the lug nuts are 12mm x 1.25 and are not the same as a Rhino uses.

Look at the STI Fitment Guide that I provide a link to. If you want the HD Alloy HD4 wheels in 14" then you will need:

4 HD Alloy HD4 Wheels in 14x7 size with a bolt pattern of 4/110 and a 5+2 Offset Part Number: 14HD400
4 Center Caps Part Number: CAPVIKEGB (gloss black)
16 Lug Nuts Part Number: LUG8

Wherever you order from, you should make sure to call them and get them to confirm everything. It seems like more than half of the folks get the wrong centercaps and a bunch get the wrong lug nuts.


·
Banned
Joined
·
261 Posts
thanks buddy you have been more than helpful. cheers
No problem. Let us know what you get, where, and for how much. When they come let us know if the order is right.

You will love the Zillas.
